Flyte Architecture: How workflow runs

Ever wondered how Flyte orchestrates complex workflows across distributed systems? This article breaks down Flyte’s core architecture, exploring how its components work together to transform your Python code into scalable, production-ready workflows.

Overview

#

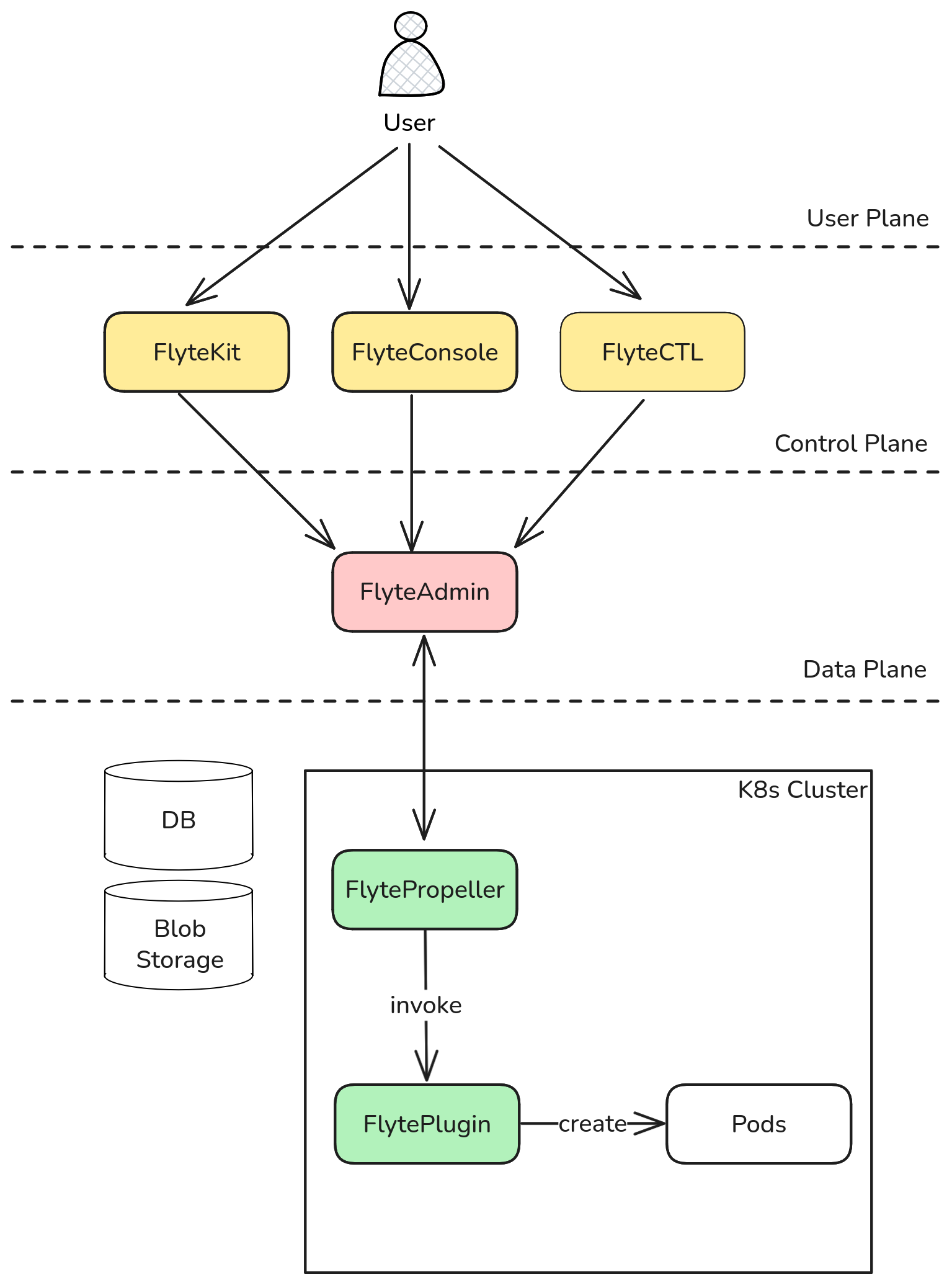

Flyte’s architecture consists of three logical planes that work together seamlessly, namely user, control, and data plane. For comprehensive details, see the official documentation.

• User Plane: Your interface to interact with the Flyte platform
  • FlyteKit: Python SDK for defining workflows, tasks, and launch plans using decorators
  • FlyteConsole: Web-based UI for visualizing workflows and monitoring executions
  • FlyteCTL: Command-line tool for interacting with Flyte cluster from your terminal
• Control Plane: The brain of Flyte that processes user requests and manages workflow lifecycle
  • FlyteAdmin: Central API server that validates inputs, compiles workflows into executable formats, and coordinates with the data plane
• Data Plane: The execution engine that runs workflows on Kubernetes and reports status back to the control plane
  • FlytePropeller: Kubernetes controller that handles task reconciliation (ensuring actual state matches desired state) and invokes the appropriate FlytePlugin for task execution
  • FlytePlugin: Extensible plugins that handle different task types by creating pods or invoking Kubernetes operators
    • Flyte supports a wide range of plugins for various compute engines and cloud services, including Spark, Ray, PyTorch, Dask, AWS Batch, BigQuery, Snowflake, and many more. You can refer to all available plugins and their setup guide here

Here’s how these components work together to execute a workflow:

1. User submits a workflow through FlyteKit, FlyteConsole, or FlyteCTL.
2. FlyteAdmin validates the input, compiles the workflow, and forwards it to FlytePropeller.
3. FlytePropeller selects the appropriate FlytePlugin to execute tasks and monitors progress until completion.

Now let’s dive deeper into what happens during each step of workflow execution.

Workflow Execution

#

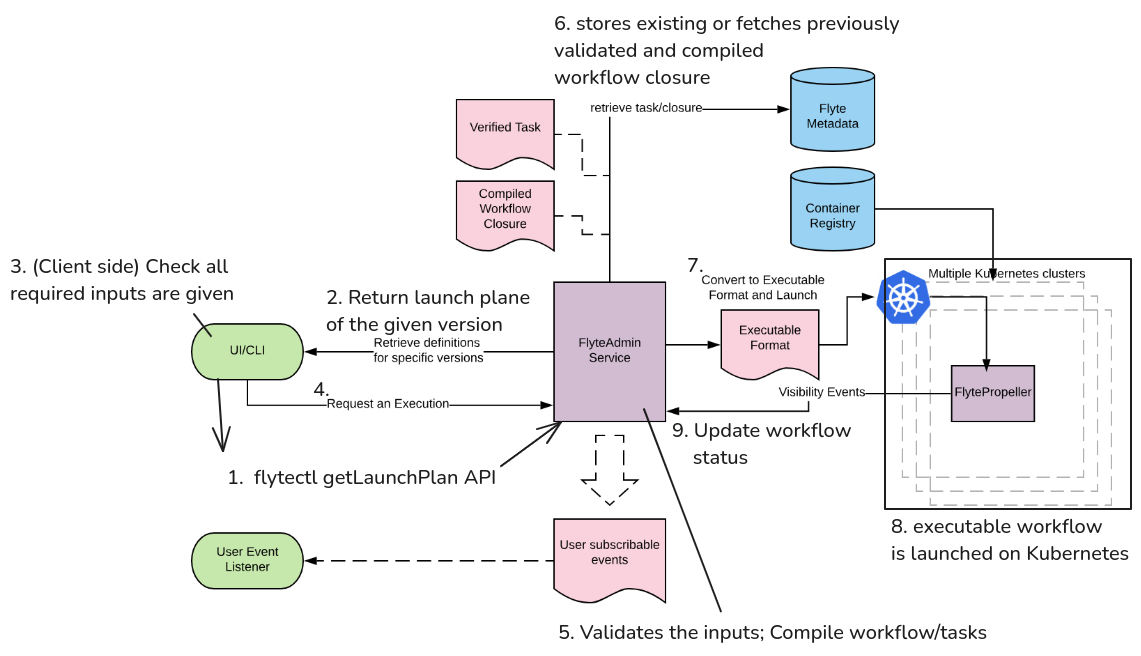

The following steps illustrate how Flyte processes a workflow from client request to execution:

1. Client requests launch plan: The client sends a getLaunchPlan request to FlyteAdmin.
   • If no launch plan is explicitly set, a default launch plan is created with the same name as the workflow.
2. FlyteAdmin returns launch plan: FlyteAdmin responds with the requested launch plan details.
3. Client validates inputs: The client checks if all required inputs are provided based on the launch plan.
4. Execution request submitted: The client sends a workflow execution request to FlyteAdmin.
5. FlyteAdmin processes request: FlyteAdmin validates inputs and compiles the workflow and tasks.
6. Metadata storage: The compiled workflow is uploaded to Flyte’s metadata storage (or fetched if previously compiled).
7. Workflow translation: The compiled workflow is translated into a flyteworkflow custom resource (CR) with inputs.
   • Custom Resource Definitions (CRDs) allow you to extend Kubernetes by defining your own resource types, similar to how built-in resources like Pod and Service are managed. A Custom Resource (CR) is an instance of such a type. Flyte uses this by defining a flyteworkflow CRD.
8. FlytePropeller executes: FlytePropeller retrieves the flyteworkflow CR, invokes appropriate FlytePlugins for execution, and monitors execution status.
9. Status updates: FlytePropeller continuously reports workflow status back to FlyteAdmin.

These steps show how Flyte’s components work together seamlessly. From user request to workflow completion, each component plays a crucial role in ensuring reliable, scalable execution.

Summary

#

Flyte’s three-plane architecture enables scalable workflow orchestration through clear separation of responsibilities:

• Client tools (FlyteKit, FlyteConsole, FlyteCTL): Your interface for defining, submitting, and monitoring workflows
• FlyteAdmin: Central control point that validates, compiles, and coordinates workflow execution
• FlytePropeller: Kubernetes controller that dispatch workflows and manages their lifecycle

This architectural design ensures reliability, scalability, and maintainability for production-grade workflow orchestration.
